K2000RRackModule

ThisCFinstallationontheK2000R(andK2500R)istheonlyCFconfigurationthatwillworkinK2xR,asfarasIknow.

ThisisbecausetheSCMCFdrivesaretoodeeptofitintherackunits–thereisnotenoughroomintherack;the back

ofthedrivewilltouchtheaudio/powerboard,andthefrontwillstickoutfromth

efaceplate.BecausethisIDECFcard

readerissoshort,itcanbeinstalledinanumberofways.Iwillshowaneasy,accuratewaytodothis.



*IfyouhavenotreadtheK2000keyboardsec

ion,Iurgeyoutoreaditbeforestartingastheremaybe informationor

stepsnotcoveredinthissection.



Partsneeded:

EverythinglistedintheK2000keyboardguideexceptfortheHDDpowercableextender

#4sheetmetalscrews

Zipties



Toolsneeded:

Drill

1/8”drillbit

3/32”drillbit

Tape

File

Safetygl

asses*Alwaysusethesewhenusingpowertools,ALWAYS!



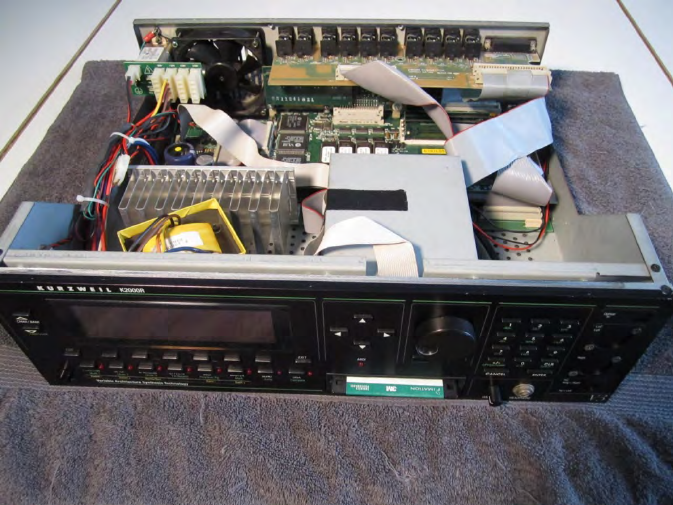

Startbyopeningupyourrackunit.

Thisa“Frankenstein”rackthatIbuiltoutofpartsfromdeadracks,sothismaynotlookexactlylikeyours.Aswiththe

K2000keyboard,layatowelundertheracksothatitdoesnotscratchyourworki

ngsurface.



Removethetapeholdingthedisplayandbuttonboardribboncablesontothesideofthedrivebracket.Removethe

fourscrewsholdingthebrackettothechassis(thiswillbeself‐explanatoryonceyoustartworking).Donotremove

thebracketandfloppydriveyet.


