MounttheCFreadertothefloppybracket.



NowyoucanpermanentlyinstalltheCFdriveintothefloppybracketusing#4sheetmetalscrews.

Looksgood!Thehardworkisdone.



MounttheSCSI/IDE



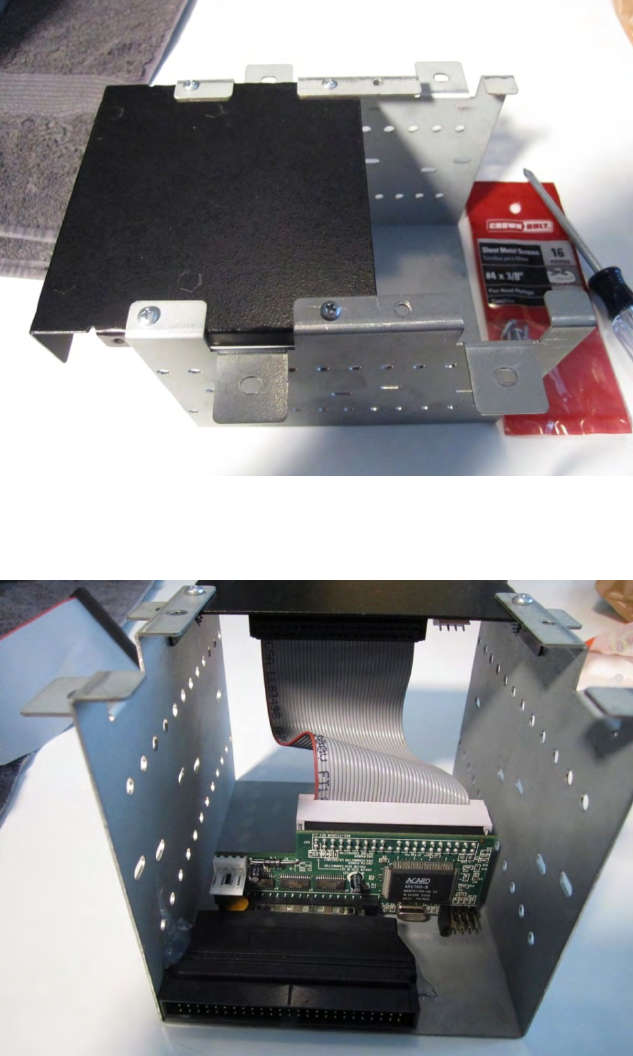

ThereisplentyofspaceinthebracketfortheIDEcable,SCSI/IDEadapter,and68pinto50pinSCSIadapter.As

with

theK2000keyboard,Iusedhotgluetoaffixtheadaptertothefloppybracket–thisprettymuchholdseverythingin

placeandmakesforeasierserviceability.Irecommendthatyouuseanadhesivethatyoucantrust–iftheassembly

falls,theSCSI/IDEcouldshortifittouchesthec

assisorbracket.Forextrainsurance,youcouldlinethe surrounding

areawithtapetopreventproblemsifitdoesfall.



YoucanconnecttheFDDYpowercabletothedriveandSCSI/IDEadapternow.
