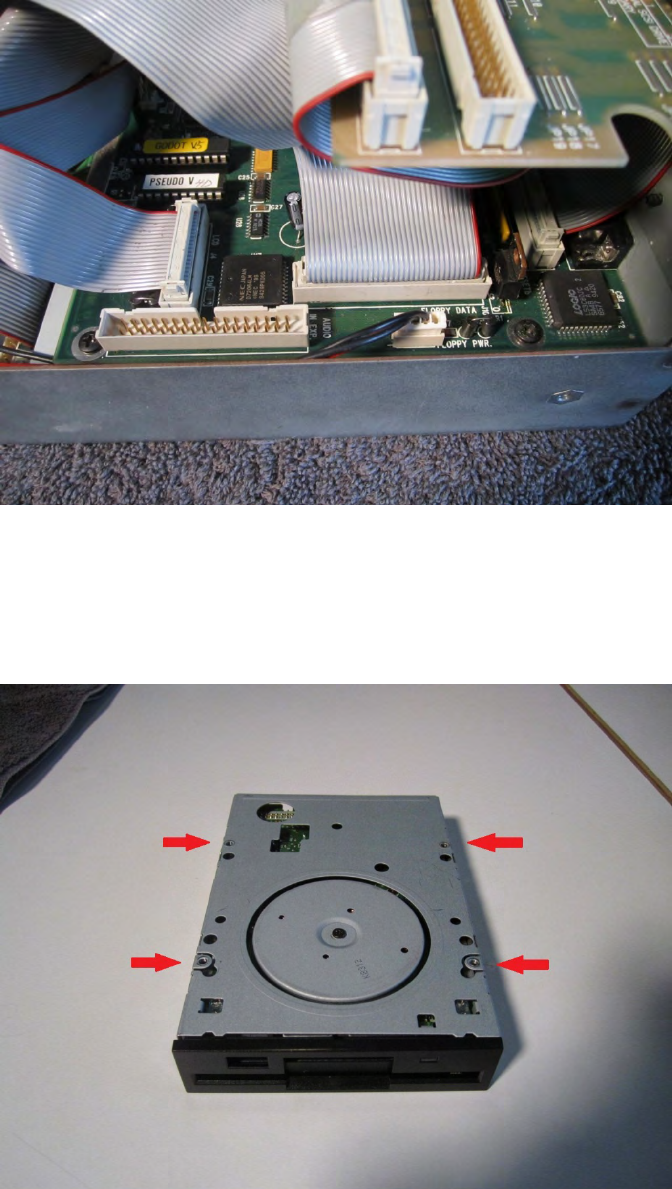

Unplugthefloppyribboncableandpowercable.Ifyouhavethesamplingoptioninstalled,youshouldnotneedto

removeit,butyouwillhavealittlelessspacetoworkwithhere.Youmaynowremovethedrivebracket,floppydrive

andcablesallatoneoncebytiltingthebracketforwardandliftin

gbackandupoutoftherackunit.(Notethatthe

connectormarked‘AudioInExp.’Isforthesamplingoption–DONOTaccidentallyplugyourfloppyribboncableinto

thisconnectororitwillshortthefloppyandmeltthecable–askmehowIknow)



Remo

vethefloppydrivefromthebracket.



Layyourfloppydriveupsidedownonthetableandnotethelocationofthescrewholes.


