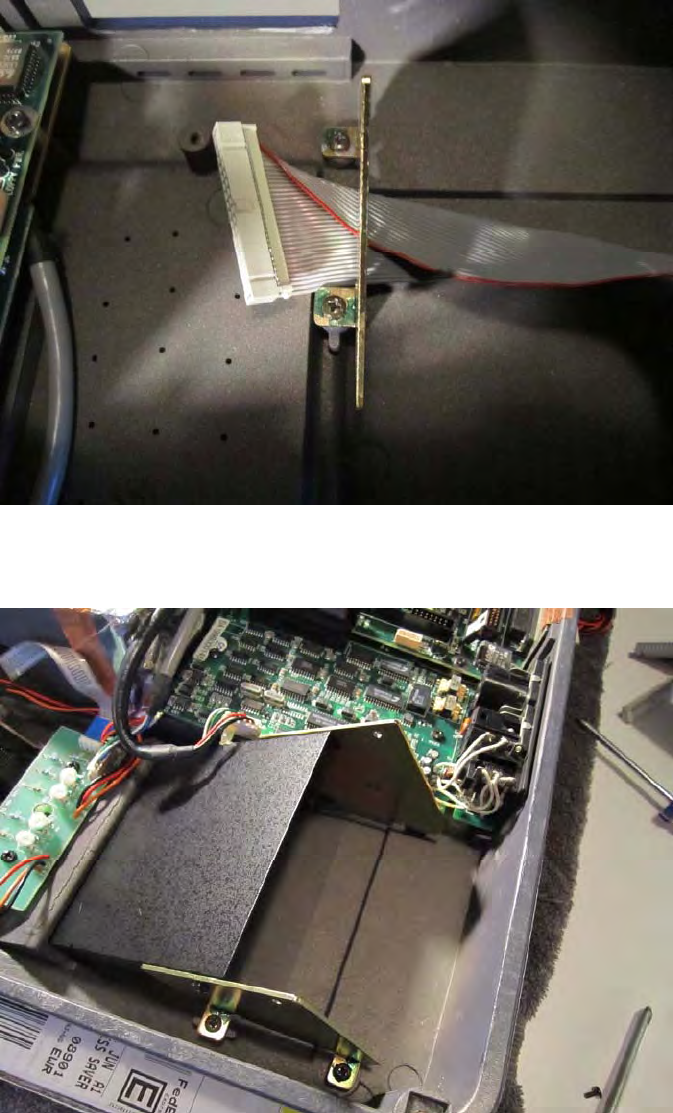

Leavethemountingbracketsinplace.Foldthefloppycableaspicturedtoeasilyslideitunderthemountingbracket.

YoucanreinstalltheSMP‐Knowthatthefloppycablesareoutfromunderit.



InstallCFdrive.Notethatthereareonlytwoscrews;oneoneitherside.



Lookathowmuchroomwehavetoworkwith!


