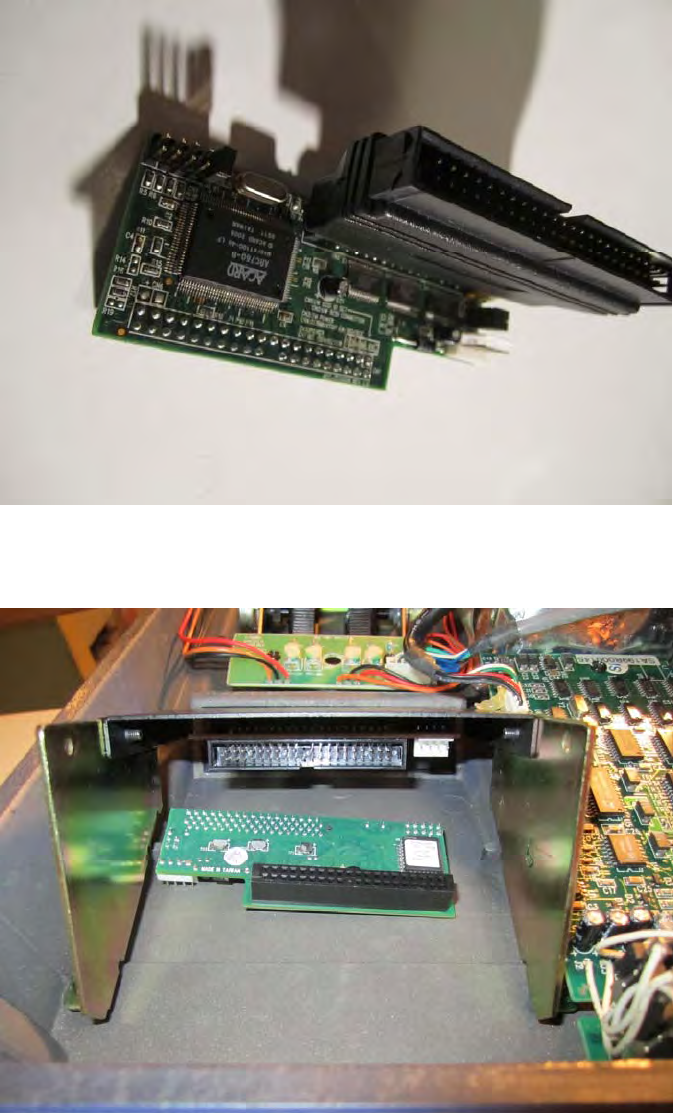

SetSCSI/IDEbridgeID.ThisoneissettoSCSI0.DonotuseSCSI6asthatistheK2000processor’sID



IusedanAEC‐7720UWanda68to50pinadapterwithhighbytetermination.TheAEC‐7720Udoesnotneedan

adapter.



Cutandterminatecables



ThereasonweneedashortmaletofemaleIDEcableisbecausetheSCSI/IDEcardwouldnotclearthebracketif

installeddirectlyonthedrive.
