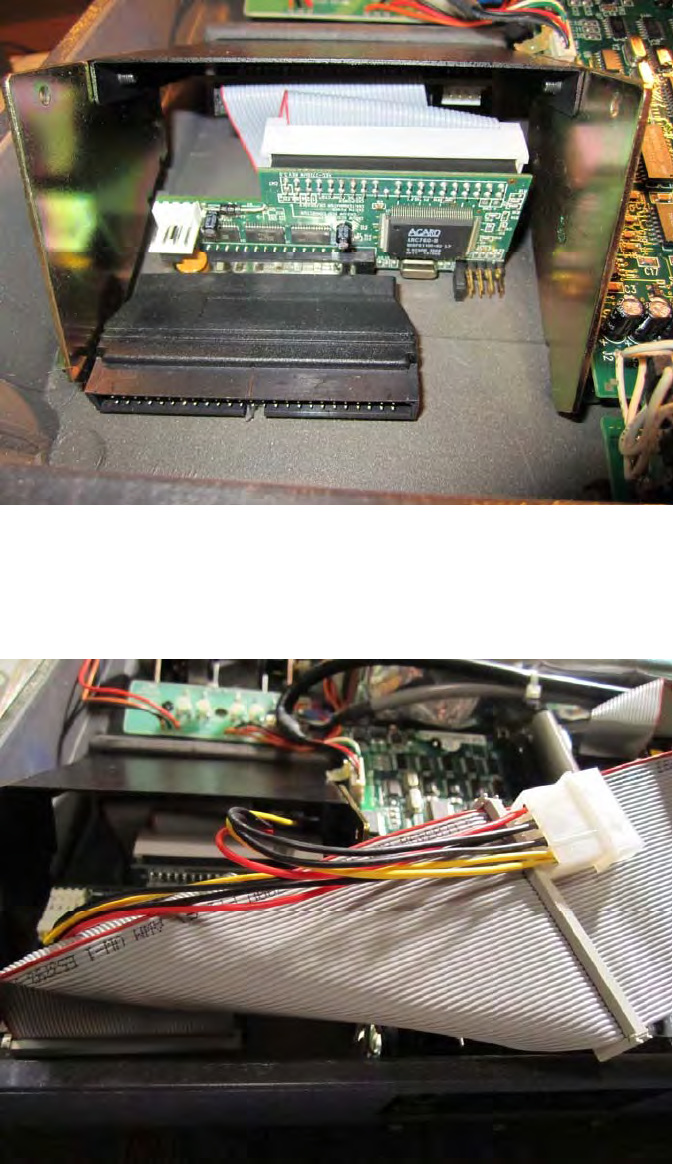

CF‐IDE‐Bridge–Adapterconnection



AttachtheIDEcablebetweenthedriveandbridge.Thegoodthingaboutusingtheadapteristhatitprovidesalarge

enoughsurfacetosecuretheassemblytothedrivebay/topcover.Iusedhotglueforthis,butyoucanalsouse

doublesidedtapeorVelcro.Leaveenoughroombetweenthead

apterandrearcovertoinsert/removetheSCSI

cable.



Adapter‐SCSIconnection



ConnecttheSCSIcabletothebridgeassemblyandthentothemainboard.YoushouldalsoconnecttheFDDpowerY

cabletothedriveandbridgeatthistime.TrytofoldtheSCSIcablesothatitdoesnotblocktheflowofairfromthe

fanduct(locate

dunderthedrivewhenthebottomcove

risinstalled).


